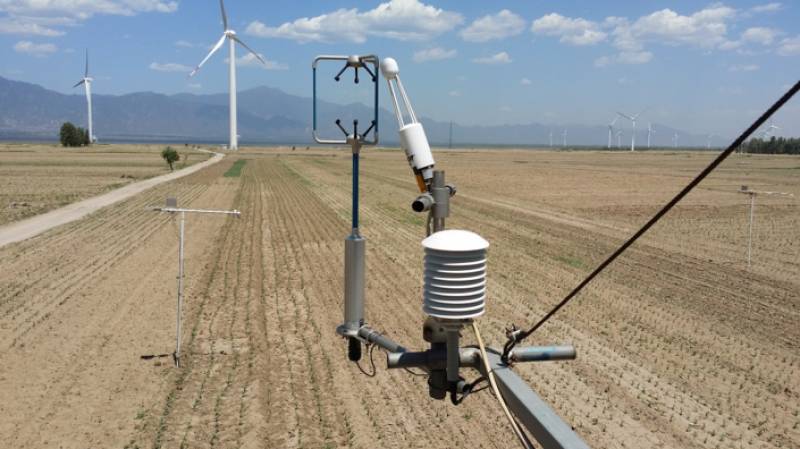

This data set contains the observation data of 10 m tower eddy covariance instrument from January 1, 2013 to December 31, 2013. The site is located in donghuayuan Town, Huailai County, Hebei Province. The longitude and latitude of the observation point are 115.7880e, 40.3491n and 480m above sea level. The acquisition frequency of vortex correlator is 10Hz, the frame height is 5 m, the ultrasonic direction is due north, and the distance between the ultrasonic anemometer (Gill) and the CO2 / H2O analyzer (li7500a) is 18 cm.
The observational data released by eddy correlator include date / time, wind direction WDIR (°), horizontal wind speed wnd (M / s) and standard deviation of lateral wind speed STD_ Uy (M / s), ultrasonic virtual temperature TV (k), water vapor density H2O (g / m3), carbon dioxide concentration CO2 (mg / m3), friction velocity ustar (M / s), obuhof length, sensible heat flux HS (w / m2), latent heat flux Le (w / M2), carbon dioxide flux FC (mg / (M2S)), quality identification of sensible heat flux QA_ HS, quality identification of latent heat flux QA_ LE。 The quality identification of sensible heat, latent heat and carbon dioxide flux can be divided into three levels (quality identification 0: (Δ st & lt; 30, ITC & lt; 30); 1: (Δ st & lt; 100, ITC & lt; 100); the rest is 2). The meaning of data time, for example, 0:30 represents the average of 0:00-0:30; the data is stored in *. XLS format.
Please refer to Yang Guangchao et al. (2015) for observation test or site introduction, and Liu et al. (2013) for data processing.
Self production (manual collection)
The released data is 30 minutes data obtained by post-processing the original collected 10Hz data by eddypro software. The main processing steps include: outlier value elimination, delay time correction, coordinate rotation (secondary coordinate rotation), angle correction, frequency response correction, ultrasonic virtual temperature correction and density (WPL) correction. At the same time, the quality evaluation of each flux value is mainly the test of atmospheric stability (Δ st) and turbulence similarity characteristics (ITC).
The 30 min flux values output after processing were also screened: (1) the data of instrument error; (2) the data of 1 h before and after precipitation; (3) the data of 10 Hz original data missing more than 10% every 30 min; (4) the observation data of weak turbulence at night (U * less than 0.1 M / s) were eliminated. The average period of observation data is 30 minutes. There are 48 data in a day, and the missing data is marked as - 6999. From February 4 to February 28, the data was missing due to the problem of the data storage card; from July 1 to July 16, the data was missing due to a problem with the power converter.
