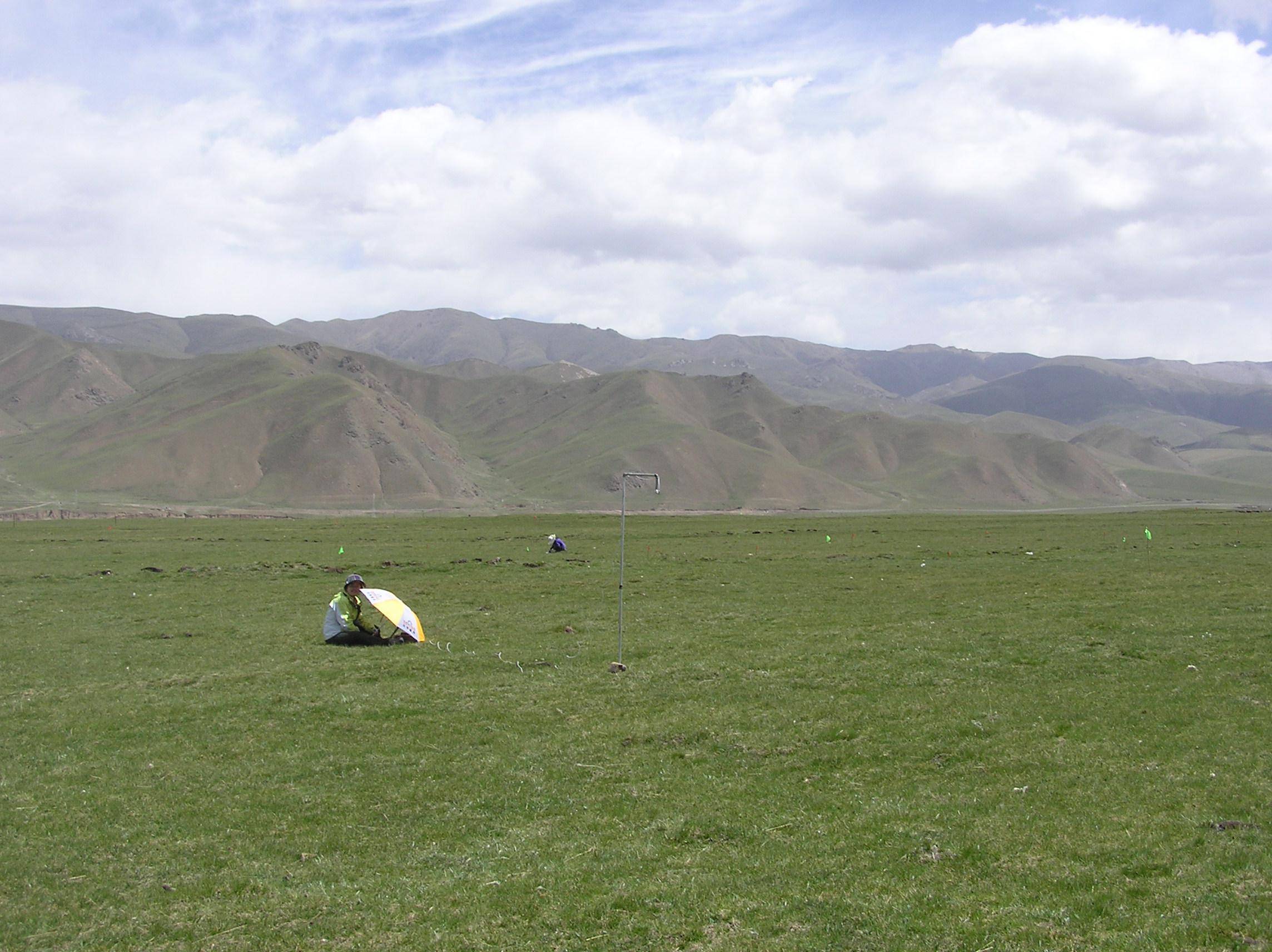

On May 31, 2008, the ground synchronous observation of airborne infrared wide-angle dual-mode line / area array scanner (widas) was carried out in arxo sampang 1 and arxo sampang 3. Widas is composed of 4 CCD cameras, 1 mid infrared thermal imager (AGEMA 550) and 1 thermal infrared thermal imager (S60). It can simultaneously obtain data of 5 angles of visible / near infrared (CCD) band, 7 angles of mid infrared band (MIR) and 7 angles of thermal infrared band (TIR). The ground synchronous observation variables mainly include surface radiation temperature and soil moisture. The surface radiation temperature is continuously measured with a fixed self recording point thermometer, the sampling interval is 0.05s, and the specific emissivity of the instrument is set to 1.0.
The data is stored in a text file (. Dat format). The first 7 lines in each text file are descriptive header files, including data collection date, recording start time, recording time interval, etc. in addition, it includes 5 columns of data such as time, toBJ, tint, Tbox and tact, where time: the time from the beginning of recording. If converted to actual time, this value plus the start time is required; ToBJ: target temperature; Tint: probe internal temperature; Tbox: cavity temperature; Tact: the actual temperature converted according to the given emissivity. Since the specific emissivity of the instrument is set to 1.0, this value is the same as toBJ, which needs to be corrected by the user according to the actual ground emissivity. Using the soil moisture data measured by TDR, the measured depths are 0-12cm and 0-20cm. Sample back and forth in the quadrat.
The data is saved in Excel format. Including soil temperature, soil dielectric constant, soil conductivity and other data.
On May 31, 2008, the ground synchronous observation of airborne infrared wide-angle dual-mode line / area array scanner (widas) was carried out in arxo sampang 1 and arxo sampang 3.
The surface radiation temperature is continuously measured with a fixed self recording point thermometer, the sampling interval is 0.05s, and the specific emissivity of the instrument is set to 1.0. The data is stored in a text file (. Dat format). The first 7 lines in each text file are descriptive header files, including data collection date, recording start time, recording time interval, etc. in addition, it includes 5 columns of data such as time, toBJ, tint, Tbox and tact, where time: the time from the beginning of recording. If converted to actual time, this value plus the start time is required; ToBJ: target temperature; Tint: probe internal temperature; Tbox: cavity temperature; Tact: the actual temperature converted according to the given emissivity. Since the specific emissivity of the instrument is set to 1.0, this value is the same as toBJ, which needs to be corrected by the user according to the actual ground emissivity.
Using the soil moisture data measured by TDR, the measured depths are 0-12cm and 0-20cm. Sample back and forth in the quadrat. The data is saved in Excel format. Including soil temperature, soil dielectric constant, soil conductivity and other data.
Good data quality
This work is licensed under
CC BY 4.0 (Creative Commons Attribution 4.0 International License).
CSTR:11738.11.ncdc.NIEER.2021.2
10.12072/ncdc.NIEER.db1740.2022
