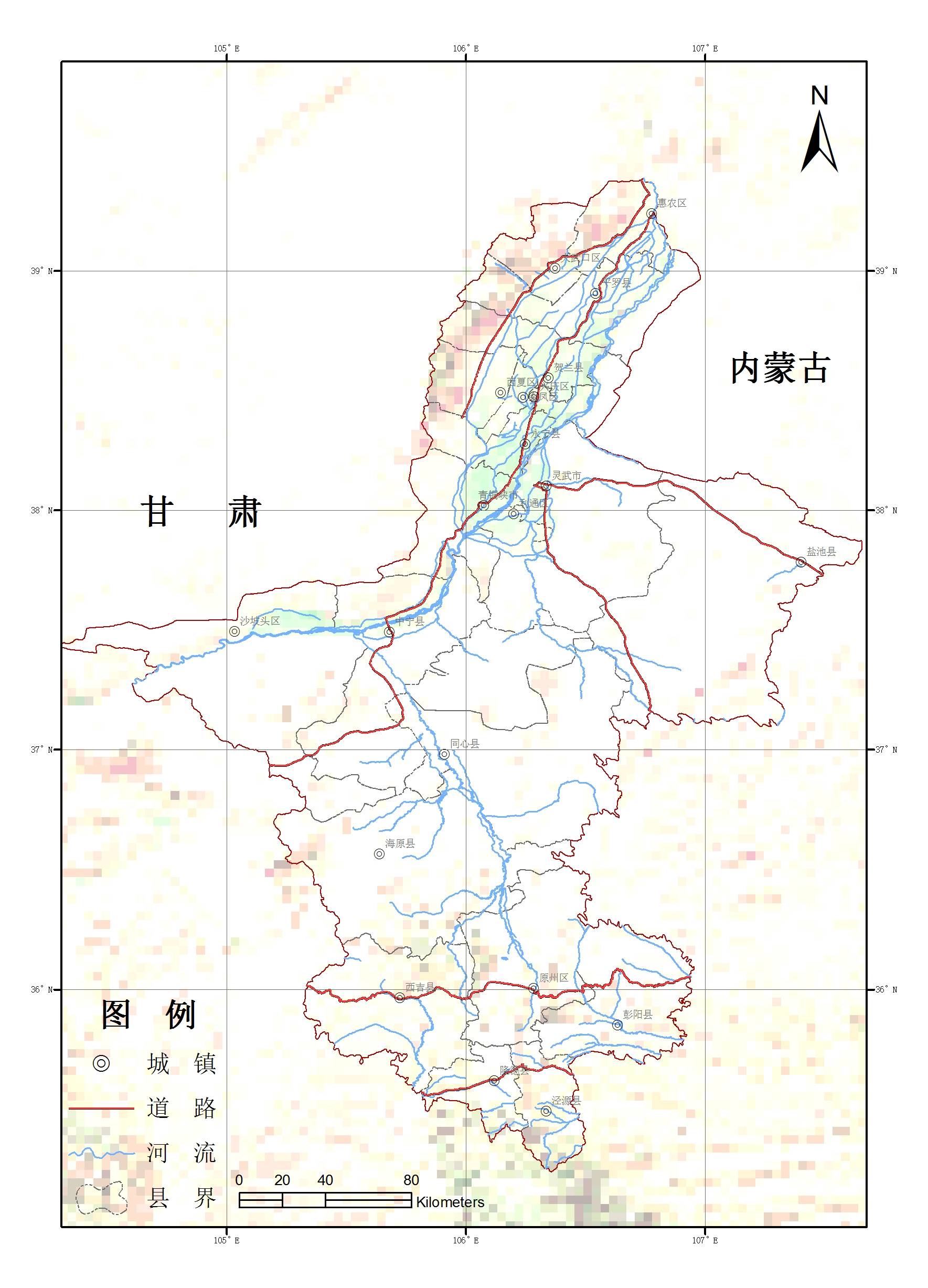

This data set is 1:100,000 basic data of Ningxia Autonomous Region. Ningxia_City_point(urban residential point), Ningxia_County_point (county and town residential point), Ningxia_Town_point (township and town residential point), Ningxia_Village_point (rural residential point), ningXIA_city_Point (urban residential point), ningXIA_village_Point (rural residential point), Ningxia_Provincial_boundary (provincial boundary), Ningxia_Prefecture_boundary (town boundary), Ningxia_County_boundary (county boundary), Ningxia_Village_boundary (town boundary) Ningxia_Rivers), ningxia_rivers Ningxia_Rivers_Region(planar river), Ningxia_Road (road), Ningxia_Landuse (land use), Ningxia_Soil_100k (soil type), Ningxia_Vegetation_1m (vegetation), Based on 2012 township zoning map, thematic map and high-resolution image extraction.
Ningxia_Rivers data, there are many tributaries are not named.
Ningxia_Road data, many roads are not named, some highways, national roads and other road turntables, and some township roads.
Ningxia_Vegetation_1m The attributes 99 and 999 in the vegetation data are non-vegetation data and non-vegetation type data.
Ningxia_Soil Some of the soil data do not have measured profile data, and the profile and others are empty values.
Scale is 1:100,000
1. Ningxia_City_point Attribute field
Field 1: NAME City name Data type :Text(60) Field 2: Coad city code Data type :Text(30)
2. Ningxia_County_point attribute field
Field 1: NAME City name Data type :Text(60) Field 2: Coad County Town code Data type :Text(30)
3. Ningxia_Town_point Attribute field
Field 1: NAME City name Data type :Text(60) Field 2: Coad township code Data type :Text(30)
Field 1: NAME City name Data type :Text(60) Field 2: Coad village code Data type :Text(30)
5. Ningxia_Rivers Attribute field
Field 1: NAME River name Data type :Text(60) Field 2: Shape_leng River length Data type :Double(18) Field 3: Code River code Data type :Text(30)
6. Ningxia_Rivers_region attribute field
Field 1: NAME River name Data type :Text(20) Field 2: Area River area Data type :Double(19) Field 3: Code River code Data type :Text(30)
7, Ningxia_Rode(road) attribute field
Field 1: NAME Name of the road Data type :Text(48) Field 2: Rf Road Class Data type :Text(16) Field 3: Shape_leng Road length Data type :Double(18) Field 4: Code Road code Data type :Code(Text, 30)
8. Ningxia_County_boundary Attribute field
Field 1: NAME Name of the county boundary Data type :Text(50) Field 2: Code County boundary code Data type :Text(50)
9. Ningxia_Prefecture_boundary Attribute field
Field 1: NAME City boundary name Data type :Text(50) Field 2: Code City boundary code Data type :Text(30)
10. Ningxia_Provincial_boundary Attribute field
Field 1: NAME Name of the provincial boundary Data type :Text(50) Field 2: Code Provincial boundary code Data type :Text(20)
11. Ningxia_Village_boundary Attribute field
Field 1: NAME Name of the township boundary Data type :Text(100) Field 2: Code Town boundary code Data type :Text(30)
12, Ningxia_Landuse attribute field
Field 1: Land type Data type :Text(50) Field 2: Code Land use code Data type :Text(30)
13, Ningxia_Soil_100k (soil) Attribute field
Field 1: Area Data type: Double (14) Field 2:Perimeter Data type: Double (14) Field 5: SoilCode (three-level encoding) Data type: Double (13) Field 6: Profile coding Data type: Long Integer (9) Field 9: Subclass name Data type: Text (23) Field 10: Pro_Name(Administrative name) Data type: Length (9) Field 11: Section thickness Data type: Double(10) Field 12: Gravel Data type: Text (7) Field 13: Coarse sand Data type: Double (9) Field 14: Fine sand Data type: Double (9) Field 15: Silt Data type: Double (9) Field 16: Clay particles Data type: Double (9) Field 17: Organic matter Data type: Double (9) Field 18:PH_H2O Data type: Double (9) Field 19:PH_KCL Data type: Double (9) Field 20: Total nitrogen Data type: Double (10) Field 21: Total phosphorus Data type: Double (10) Field 22: Total potassium Data type: Double (10)
14, Ningxia_Vegetation Attribute field
Field 1: Area Data type: Double (14) Field 2:Perimeter Data type: Double (14) Field 3: VEGETATION Data type: Double (11) Field 4: VEGETATI_1 Data type: Double (11) Field 5: VEGE_ID Data type: Text(30) Field 6: New encoding Data type: Text(13) Field 7: Vegetation formation and Data type: Text(131) Field 8: Vegetation type number Data type: Text(13) Field 9: Vegetation formation and Data type: Short Integer(2) Field 10: Vegetation type Data type: Text(50) Field 11: Vegetation type group coding Data type: Text(4) Field 12: Vegetation type group Data type: Text(12) Field 13: Vegetation categories Data type: Text(10) Field 14:VEGETATI_2 Vegetation coefficient and name in English Data type: Text(245) Field 15: VEGETATI_3 English vegetation type name Data type: Text(108) Field 16: VEGETATI_4 English vegetation group name Data type: Text(211) Field 17: VEGETATI_5 Name of the English vegetation category Data type: Text(23)
collect time | 2012/01/01 - 2012/12/31 |
---|---|
collect place | Ningxia Autonomous Region |
data size | 66.5 MiB |
data format | shp |
Coordinate system | WGS84 |
Projection | / |
Topographic maps, scanned thematic maps, remote sensing images TM/ETM, ASTER, OSM databases, and other data sources
Using remote sensing software such as GIS and ENVI, perform precise correction on the required images to ensure that the error of adjacent images is less than one pixel. Then, after digitization, extract, organize, and edit spatial and attribute data strictly according to the 100000 scale requirements
Data such as finely corrected planning maps, maps, and remote sensing images
# | title | file size |
---|---|---|
1 | _ncdc_meta_.json | 8.7 KiB |
2 | 宁夏自治区2012年1:10万基础数据集.zip | 66.5 MiB |
Town boundary boundary Soil type vegetation Planar River Settlements
