1. The data set contains the meteorological element observation data of youjingyangling station on Heihe hydrometeorological observation network from January 1, 2014 to December 31, 2014
2. The data set contains the meteorological element observation data of youhuangzangsi station on Heihe hydrometeorological observation network from June 10, 2013 to December 31, 2013. The site is located in huangcangsi village, Babao Town, Qilian County, Qinghai Province. The underlying surface is farmland (wheat)
3. The data set contains the observation data of meteorological elements of youa Rou Yangpo station on the Heihe hydrometeorological observation network from August 8, 2013 to December 31, 2013. The station is located on the North sunny slope of a rou Township, Qilian County, Qinghai Province, with alpine grassland on the underlying surface. The longitude and latitude of the observation point are 100.5204e, 38.0898n and 3529m above sea level
4. The data set contains the meteorological element observation data of Youshen Shawo desert station in Heihe hydrometeorological observation network from September 1, 2012 to December 31, 2013. The station is located in shenshawo, Zhangye City, Gansu Province, with the underlying surface of desert. The longitude and latitude of the observation point is 100.4933e,
5. The data set contains the meteorological element observation data of youebuo station on Heihe hydrometeorological observation network from June 11, 2013 to December 31, 2013. The station is located in the grassland of EBAO Town, Qilian County, Qinghai Province, and the underlying surface is alpine grassland. The longitude and latitude of the observation point are 100.9151e, 37.9492n and 3294m above sea level
Data of meteorological stations in the middle reaches of Heihe hydrometeorological observation network

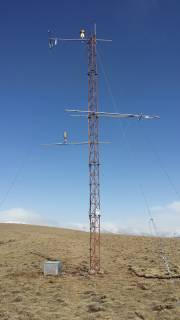

The air temperature and relative humidity sensors are erected at 5m, facing due north; The barometer is installed in the skid proof box on the ground; Tipping bucket rain gauge shall be installed at 10m; The wind speed and direction sensor is erected at 10m, facing due north; The four component radiometer is installed at 6m, facing due south; Two infrared thermometers are installed at 6m, facing due south, and the probe is vertically downward; The soil temperature probe is buried at 0cm on the surface and 4cm, 10cm, 20cm, 40cm, 80cm, 120cm and 160cm underground, just south of the meteorological tower 2m away; The soil moisture probe is buried at 4cm, 10cm, 20cm, 40cm, 80cm, 120cm and 160cm underground, just south of the meteorological tower 2m away; Soil heat flow plates (3 pieces) are successively buried 6cm underground, 2m south of the meteorological tower
Observation items: air temperature and humidity (TA)_ 5m、RH_ 5m (in degrees Celsius, percentage), pressure (press) (in HPA), precipitation (rain) (in mm), wind speed (WS_ 10m (unit: M / s), wind direction (WD)_ 10m (in degrees), four component radiation (DR, ur, DLR)_ Cor、ULR_ COR, RN (unit: w / m2), surface radiation temperature (IRT)_ 1、IRT_ 2) (unit: Celsius), soil heat flux (GS)_ 1、Gs_ 2、Gs_ 3) (in watts per square meter), soil temperature (TS)_ 0cm、Ts_ 4cm、Ts_ 10cm、Ts_ 20cm、Ts_ 40cm、Ts_ 80cm、Ts_ 120cm、Ts_ 160cm (in degrees Celsius), soil moisture (MS)_ 4cm、Ms_ 10cm、Ms_ 20cm、Ms_ 40cm、Ms_ 80cm、Ms_ 120cm、Ms_ 160cm) (in percentage)
Observation data processing and quality control:
（ 1) Ensure 144 data every day (every 10min). In case of missing data, it shall be marked by - 6999; The four component radiation is between June 12 and June 30, 2014. Due to the problem of collector expansion board, the data is missing; The soil temperature is between June 12 and June 14, 2014. Due to the problem of data collector, the data is missing; 7.22-8.19 the wind speed is missing due to the problem of the sensor; The surface radiation temperature is between 9.2-10.23, and the data is missing due to the problem of collector expansion board
（ 2) Eliminate the time with duplicate records
（ 3) Data that is obviously beyond the physical meaning or beyond the range of the instrument are deleted
（ 4) The part marked in red in the data is questionable data
（ 5) The format of date and time is unified, and the date and time are in the same column. For example, the time is: 10:30, September 10, 2014
（ 6) The naming rule is: AWS + site name
Good data quality
