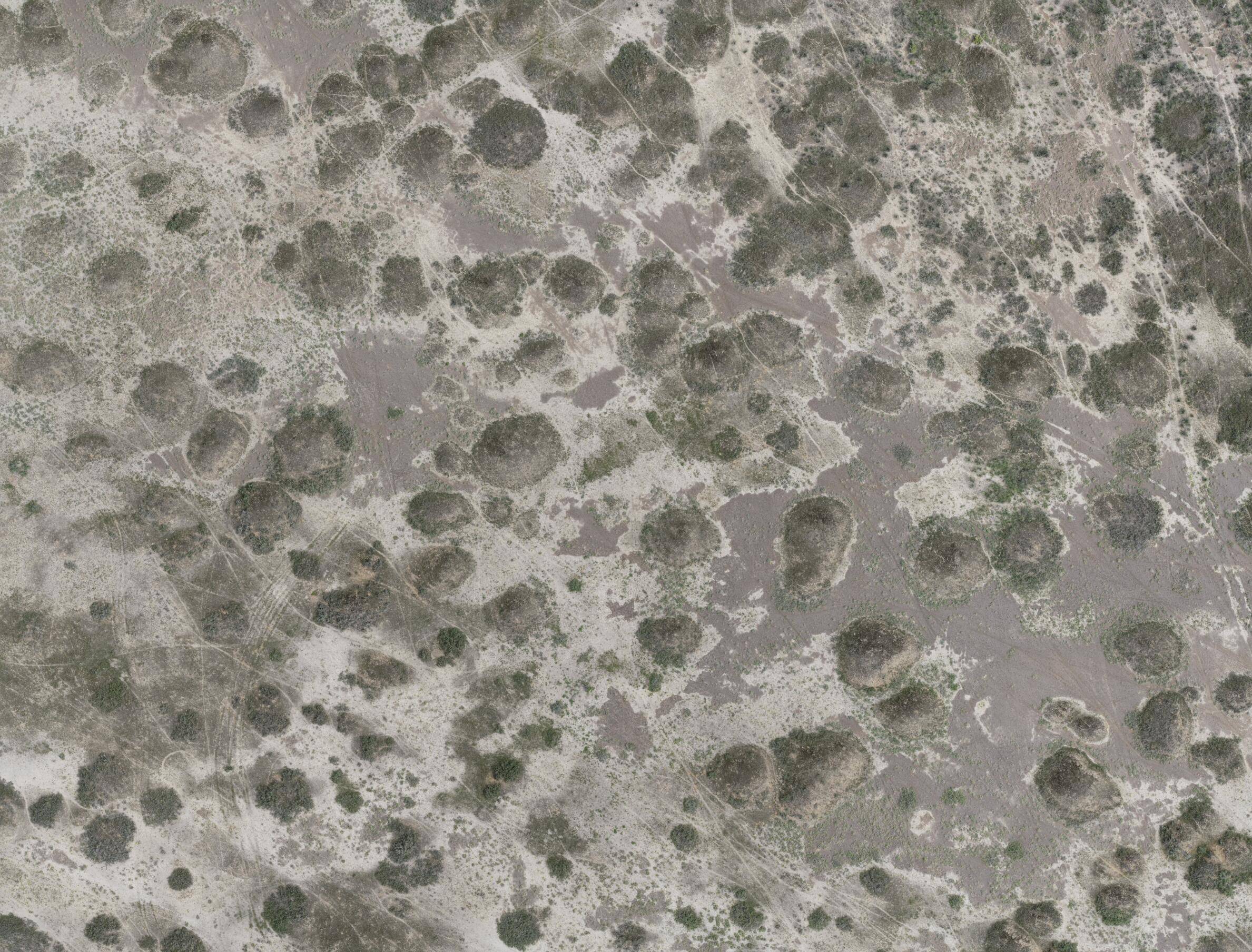

This atlas takes the Horqin Sandy Land, Hulunbeier Sandy Land and Maowusu Sandy Land in the farming pastoral ecotone of northern China as the core, and uses the DJI phantom 4 to take vertical and downward continuous photographs of typical desert and sand fixing plant communities, and finally integrates them into about 100 m × A centimeter level orthophoto image of a plant community at a height of 100 meters, with established or dominant species including: Achnatherum splendens, Leymus chinensis, Wolf needle grass, Caragana korshinskii, Sarcandra sargentiana, Tetrandra sinensis, Salt claw, Ulmus pumila, Stipa arundinacea, etc.
Low altitude aerial photography of plant communities.
Select a typical desert plant community with a relatively uniform landscape, and plan a drone operation target area in the DJI flight control application in Xinjiang. Set a heading overlap rate of 85% and a lateral overlap rate of 80%, with a flight altitude of 20 meters relative to the takeoff point. The drone will collect photos along the route and return. Import all aerial photos collected from a single operation target area into software such as Agisoft PhotoScan and DJITU for 2D visible light reconstruction.
The data quality is good.
| # | number | name | type |
| 1 | 2017FY100200 | Survey of main plant communities in Chinese desert | Basic Resource Survey Project |
This work is licensed under
CC BY 4.0 (Creative Commons Attribution 4.0 International License).
CSTR:11738.11.NCDC.I-VEG.DB7045.2025
10.12072/ncdc.i-veg.db7045.2025
