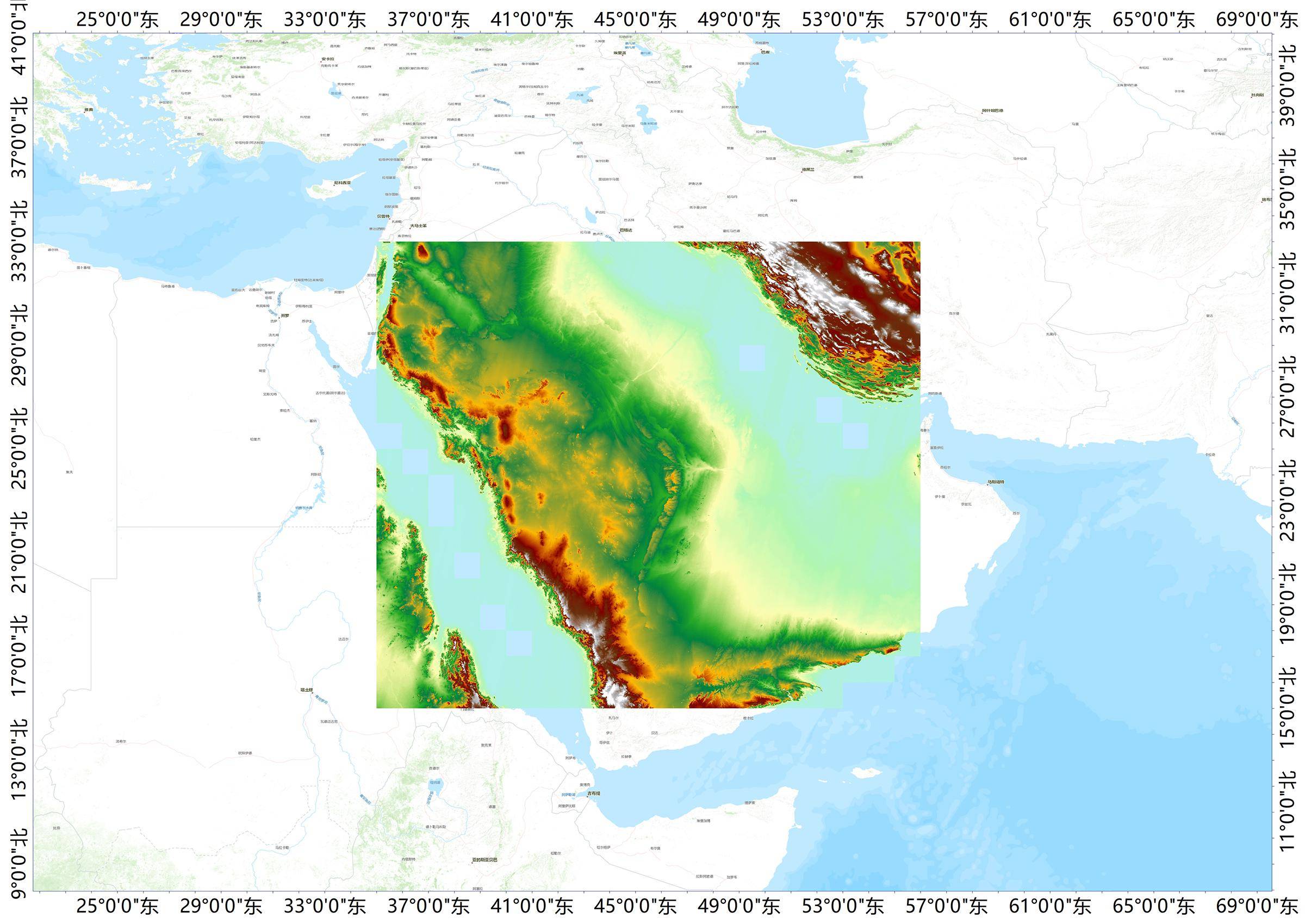

30m Resolution Digital Elevation Model (DEM) Data of the Arabian Peninsula

English name

CSTR

CSTR:11738.11.ncdc.nieer.2020.1680

DOI

10.12072/ncdc.NIEER.db0101.2020

Share type

Category

Basic Geography

contributors

HAN Liqin

Datasets description

This dataset was optimized through refinement, local corrections, and rectification based on domestic and international stereo imaging satellite data. By applying processing methods including gross error correction, null value filling, and removal of abnormal waterbody values, an optimized 30m resolution DEM was generated through image mosaicking, projection transformation, and cropping.

Base information

collect time	2020/08/01 - 2020/08/31
collect place	Arabic
altitude	-199.0m - 2006.0m
data size	3.5 GiB
data format	Tiff
Data spatial resolution (/ M)	30m
Coordinate system	WGS84
Projection	GCS_WGS_1984

Data source description

The original DEM data originates from both domestic and international satellite sources including ASTER, ZY, and Obit, in GeoTIFF format, with WGS84/EGM96 as the vertical datum.

Data processing method

The DEM tiled data was processed using ArcGIS batch processing tools for format conversion, mosaicking, and cropping to produce the 30m resolution DEM.

Data quality description

The dataset features a spatial resolution of 1 arc-second (~30m), with invalid pixel values set to -9999, sea level data as 0, vertical accuracy of 20m, and horizontal accuracy of 30m.

Citations and annotations

In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.

This data is uploaded in 1:25000 frames, and users can embed the grid after downloading all of them.

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference

HAN Liqin. 30m Resolution Digital Elevation Model (DEM) Data of the Arabian Peninsula. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2020. https://cstr.cn/CSTR:11738.11.ncdc.nieer.2020.1680.
HAN Liqin. 30m Resolution Digital Elevation Model (DEM) Data of the Arabian Peninsula. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2020. https://www.doi.org/10.12072/ncdc.NIEER.db0101.2020.

EndnoteEN BibtexEN RISEN

license agreement

This work is licensed under CC BY 4.0 (Creative Commons Attribution 4.0 International License).
