30m resolution digital elevation model (DEM) data in the Qilian Mountains region
  • 2020/11/30 23:44
  • 10664
  • 288
  • 6
English name
30m resolution digital elevation model (DEM) data in the Qilian Mountains region
CSTR
CSTR:11738.11.ncdc.qlsst.2020.17
DOI
10.12072/ncdc.qlsst.db0007.2020
Share type
Online
Category
Basic Geography
source site
Qilian Mountain Ecological Environment Research Center
contributors
Zhang Jutao , Zhang Chengqi , Feng qi
Datasets description

This dataset uses SRTM v41 1s segmented data, which is processed through image stitching, projection conversion, cropping, etc. to generate a 30m resolution digital elevation model (DEM) for the Qilian Mountains region.

Base information
collect time 2000/01/01  -  2000/12/31
collect place Qilian Mountains region
altitude 1040.0m - 5993.0m
data size 461.5 MiB
data format Raster/GeoTIFF
Coordinate system WGS84
Projection GCS_WGS_1984

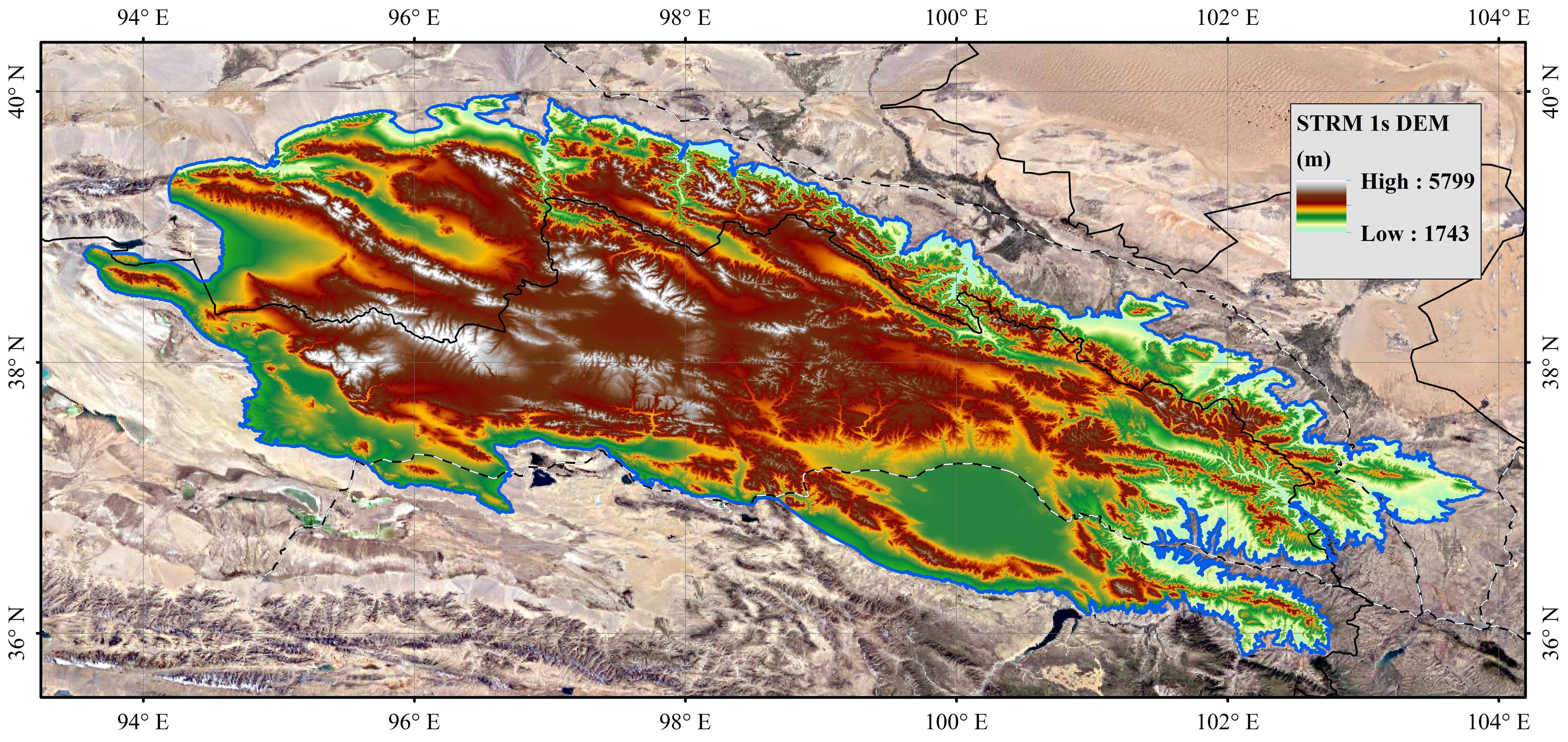

Data thumbnail
Data source description

The 30m resolution DEM data for the Qilian Mountains region comes from NASA's SRTM v41 1s data, which is currently distributed for free by USGS and can be downloaded for free from the USGS FTP site.

Data processing method

Using a Python program, the SRTM v41 1s segmented data is processed through format conversion, concatenation, and cropping to obtain 30m resolution DEM data for the Qilian Mountains region;

Data quality description

The vertical error of SRTM DEM data is less than 16 meters

Project information
# number name type
1 Y719H71011 Special service of Qilian mountain ecological environment quality assessment other
2 2021ZDKT0004 other
Citations and annotations
In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.
This data is produced by "Gansu Qilian Mountain Ecological Environment Research Center of Northwest Institute of Ecological Environment and Resources, Chinese Academy of Sciences". When using the data, users should clearly state the source of the data in the text, and quote the reference method provided by this metadata in the reference section.

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference
  1. Zhang Jutao, Zhang Chengqi, Feng qi. 30m resolution digital elevation model (DEM) data in the Qilian Mountains region. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2020. https://cstr.cn/CSTR:11738.11.ncdc.qlsst.2020.17.
  2. Zhang Jutao, Zhang Chengqi, Feng qi. 30m resolution digital elevation model (DEM) data in the Qilian Mountains region. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2020. https://www.doi.org/10.12072/ncdc.qlsst.db0007.2020.
license agreement
Creative Commons License   This work is licensed under a Creative Commons Attribution 4.0 International License.
# title file size
1 SRTM_v41_1s_QilianMountains.rar 460.0 MiB
2 SRTM_v41_1s_QilianMountains_Guide_数据说明.docx 1.5 MiB
3 _ncdc_meta_.json 4.3 KiB
loading
How to get the data
east 103.90
west  93.50
south  35.83
north  39.98
