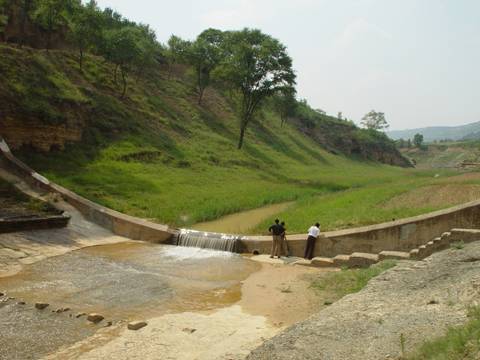

This data set is the runoff and sediment observation data set of yanwachuan River Basin from 1981 to 1990. The experimental observation section of runoff station is a large parabolic weir, and the observation mode is manual observation. It mainly includes daily average discharge data, daily average sediment concentration data, daily average sediment transport rate data, extracted data of flood hydrological elements, and successive flood test results data.
| collect time | 1981/01/01 - 1990/12/31 |
|---|---|
| collect place | Yanwachuan basin, Ningxian County, Qingyang City, Gansu Province |
| altitude | 980.0m - 1340.0m |
| data size | 3.1 MiB |
| Data time resolution | minute |
Artificial timing observation.
Manual regular observation: the base flow in non flood season adopts two-stage system, that is, once at 8:00 and 20:00; in flood season, it adopts 4-stage system, that is, once at 2:00, 8:00, 14:00 and 20:00, and the flood season is from June to September. (1) Water level observation: a side wall type water gauge group is set on the left side of the upper part of the parabolic weir to observe the number and reading of the water gauge. Regular observation of base flow in flood season and non flood season. In flood season or rapid water level change period, under the premise of reading and controlling the water level at the important turning points of rise and fall, peak top, fall level and other water level fluctuation, the measurement times are roughly evenly arranged according to the water level change. There are no less than 3 times near the peak, and no less than 11 times for a single peak. The observation is conducted 30 minutes to 1.0 hours after leveling, and each peak, valley and integrity are required to be measured The water level change process. (2) Sediment Observation: the method of one point at the water edge is used to collect sediment. The principle of sediment sampling times in flood period is to control the change process of sediment concentration. When the water and sediment peaks are inconsistent or the sediment concentration changes sharply, the measurement times should be increased appropriately. All water samples were treated by displacement method. (3) Discharge calculation: the observed water level is used to calculate the discharge, and the calculation formula is q = 20.89h? 2, Q: flow, unit: m3 / S; H: water level, unit: M. (4) Calculation of sediment concentration: use the formula P = WS / V * 1000 to calculate the sediment concentration, P: measured sediment concentration, unit: kg / m3; V: water sample volume, unit: cm 3; WS: dry sand weight in water sample, unit: G.
In the process of compilation and input of observation data, there are four levels of manual verification, including tabulation, primary calibration, recheck and audit, so as to ensure the data quality.
This work is licensed under
CC BY 4.0 (Creative Commons Attribution 4.0 International License).
| # | title | file size |
|---|---|---|
| 1 | 11砚瓦川逐次洪水测验成果表.xls | 2.7 MiB |
| 2 | 3砚瓦川逐日平均流量表.xls | 121.0 KiB |
| 3 | 5砚瓦川逐日平均含沙量表.xls | 75.0 KiB |
| 4 | 7砚瓦川逐日平均悬移质输沙率表.xls | 88.0 KiB |
| 5 | 9砚瓦川洪水水文要素摘录表.xls | 119.5 KiB |
average sediment transport rate Erosion modulus runoff modulus runoff depth average flow average sand content
