Gansu Province 1:500000 Basic Natural Disaster Spatial Dataset (2008)

English name

CSTR

CSTR:11738.11.ncdc.Westdc.2020.796

DOI

10.12072/ncdc.westdc.db3887.2023

Share type

Category

Basic Geography

contributors

WU Lizong

Datasets description

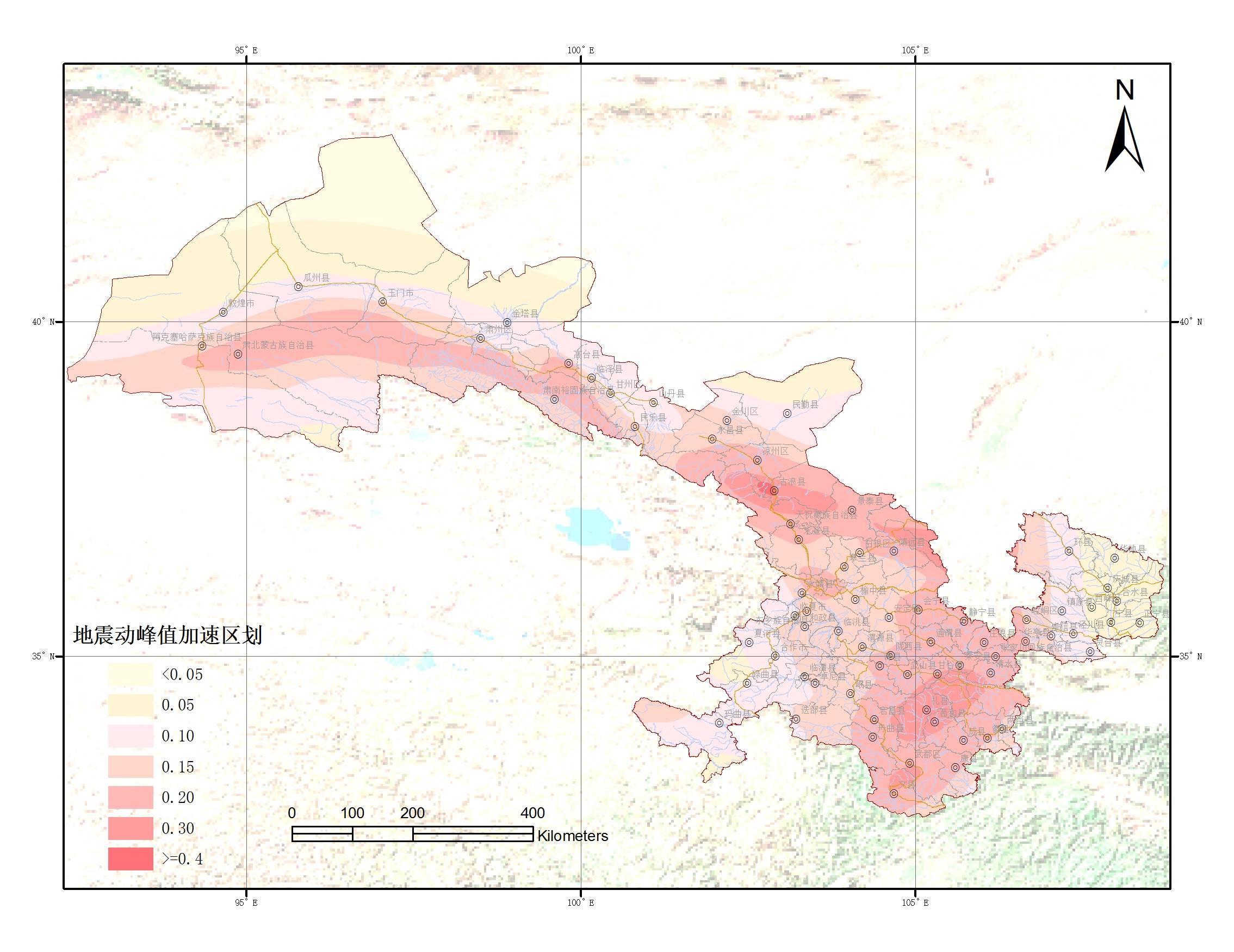

The dataset mainly includes earthquake disaster indicators in Gansu Province: the characteristic period map of seismic response spectrum in Gansu Province in 2008, and the acceleration zoning map of seismic peak in Gansu Province in 2008.

On a scale of 1:500000

Field 1: Seismic peak acceleration zoning Data type: Floating point (50)

Field 2: Characteristic period of seismic response spectrum Data type: Floating point (50)

Base information

collect time	2008/01/01 - 2008/12/31
collect place	Gansu
data size	3.9 MiB
data format	shp
Data spatial resolution (/ M)	/
Coordinate system	WGS84
Projection	/

Data source description

Special Map of Earthquake Disasters in Gansu Province, Other Reference Materials

Data processing method

Utilize remote sensing software such as GIS and ENVI to accurately correct the required images and then digitize them. Strictly extract, organize, and edit spatial and attribute data according to the 100000 scale requirements

Data quality description

Scan thematic maps and undergo precise correction

Citations and annotations

In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference

WU Lizong. Gansu Province 1:500000 Basic Natural Disaster Spatial Dataset (2008). National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2020. https://cstr.cn/CSTR:11738.11.ncdc.Westdc.2020.796.
WU Lizong. Gansu Province 1:500000 Basic Natural Disaster Spatial Dataset (2008). National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2020. https://www.doi.org/10.12072/ncdc.westdc.db3887.2023.

EndnoteEN BibtexEN RISEN

license agreement

This work is licensed under CC BY 4.0 (Creative Commons Attribution 4.0 International License).

Relevant data
File list

#	Dataset title
1	Ningxia Autonomous Region 1:500000 Basic Natural Disaster Spatial Dataset (2005)
2	Inner Mongolia 1:500000 basic natural disaster spatial data set (2005)
3	Xinjiang 1:2 million and 1:5 million natural disaster datasets for the last 50 years
4	Gansu Province 1:100000 Basic Geographic Dataset (2012)
5	1:100000 Basic Geographic Dataset in Core Jurisdictions of Gansu Province (2012)
6	Gansu Province Basic Geographic Dataset
7	Statistical Dataset of Natural Disasters and Emergencies in Gansu Province (1999-2020)
8	2012 Gansu Province Longnan City geological disaster survey data
9	1:100000 spatial basic data set of Qilian Mountains Nature Reserve
10	Gansu Province Landslide Point Dataset (2008-2014)

#	title	file size
1	甘肃省2005年50万基础自然灾害空间数据集.zip	3.9 MiB

add comment

Scan and browse on mobile

How to get the data

登录后下载

Theme:
disaster Seismic peak acceleration zoning Characteristic period of seismic response spectrum earthquake
Subject:
geography
Time:
2008
Place:
Gansu Province

east 108.71

west 92.32

south 32.60

north 42.79

Export metadata

Contact information

contributors:: WU Lizong
author:: GAI Chunmei
manager:: MIN Yufang

Platform Service information

contacts:: Li Hongxing
phone:: 0931-4967592
mailbox:: ncdc@lzb.ac.cn
