Observation data set of runoff and sediment in Jiuyuangou watershed, the first sub region of Loess Hilly and gully region, 1980-1990

English name

CSTR

CSTR:11738.11.ncdc.HWSDZhan.2021.131

DOI

10.12072/ncdc.HWSDZhan.db0059.2020

Share type

Apply to Access

Category

Soil and Water Conservation

contributors

Suide administration and Supervision Bureau of water and soil conservation of the Yellow River (Suide scientific experimental station of water and soil conservation)

Datasets description

This data set is the runoff and sediment observation data of Jiuyuangou River Basin from 1980 to 1990. Through the water level observation and sediment sampling of runoff station section, the runoff and sediment amount during runoff generation are calculated. The data set includes the measured discharge results table of Jiuyuangou River Basin and wangmaozhuang runoff station, the extract table of flood hydrological elements, the result table of successive flood test, the daily average discharge table, the daily average sediment concentration table and the daily average sediment transport rate table.

Base information

collect time	1980/01/01 - 1990/12/31
altitude	2.0m -
data size	778.4 KiB
Data time resolution	branch、day、second
Coordinate system	WGS84

Data source description

Manual timing observation

Data processing method

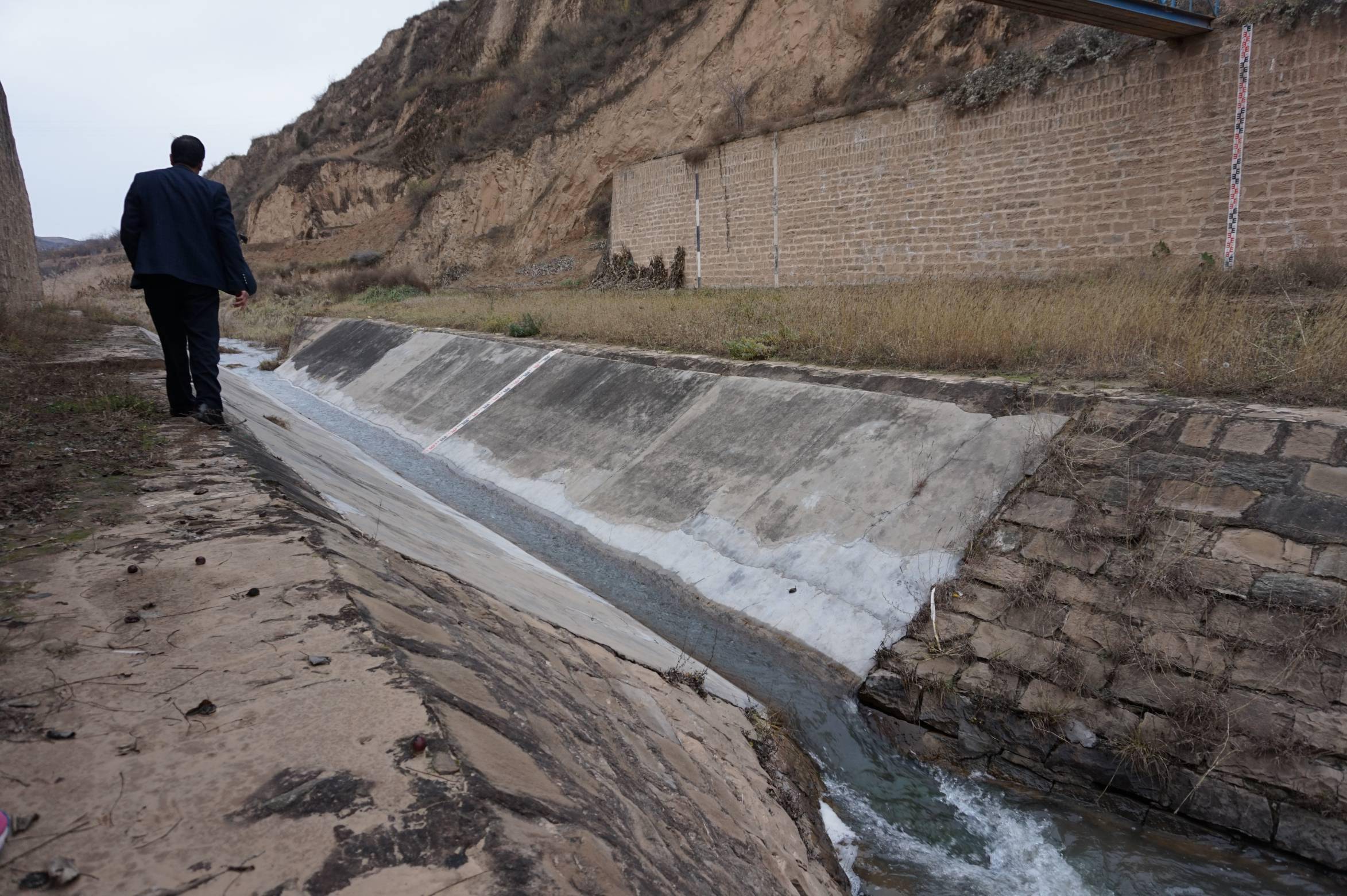

1. The water level observation method of runoff station is: read the water gauge number of the flow measurement building on the flow measurement section. In non flood season, 8:00 and 20:00 respectively are observed once a day. If there is rainfall, observe twice at 8:00 and 20:00 respectively when the daily water level changes slowly; observe four times at 2:00, 8:00, 14:00 and 20:00 respectively when the daily water level changes greatly or there are slow peaks and valleys. During the flood season, when the water level changes violently, it shall be observed in multiple of 6 minutes. 2. Flow measurement method of channel diameter flow station: when the water level is higher than the triangular channel, the buoy method is used to measure the flow in the rectangular spillway, and the buoy coefficient is based on the buoy test results of huangweizizhou runoff test station. 3. Flow measurement method of wangmaozhuang runoff station: adopt the calibrated natural section observation and the calibrated push flow formula for flow calculation. 4. Sediment sampling and treatment: the sediment in the flow measurement section is sampled by the thalweg buoy method, and the number of sediment sampling depends on the number of changes in the flood water level. In order to control the change of sediment concentration, the number of sampling is increased during the flood peak. The sample was treated by displacement method.

Data quality description

Manual observation shall be conducted by professional technicians; during data entry, four levels of manual verification shall be conducted, including tabulation, primary calibration, re calibration and audit, so as to ensure data quality.

Citations and annotations

In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference

Suide administration and Supervision Bureau of water and soil conservation of the Yellow River (Suide scientific experimental station of water and soil conservation). Observation data set of runoff and sediment in Jiuyuangou watershed, the first sub region of Loess Hilly and gully region, 1980-1990. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2020. https://cstr.cn/CSTR:11738.11.ncdc.HWSDZhan.2021.131.
Suide administration and Supervision Bureau of water and soil conservation of the Yellow River (Suide scientific experimental station of water and soil conservation). Observation data set of runoff and sediment in Jiuyuangou watershed, the first sub region of Loess Hilly and gully region, 1980-1990. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2020. https://www.doi.org/10.12072/ncdc.HWSDZhan.db0059.2020.

EndnoteEN BibtexEN RISEN

license agreement

This work is licensed under CC BY 4.0 (Creative Commons Attribution 4.0 International License).

Relevant data
File list

#	Dataset title
1	Observation data set of runoff and sediment in Jiuyuangou watershed, the first sub region of Loess Hilly and gully region from 1964 to 1979
2	Observation data set of runoff and sediment in Jiuyuangou watershed in the first sub region of Loess Hilly and gully region from 1991 to 2000
3	Runoff and sediment observation data set of Leek Garden Gully watershed in the first sub-region of Loess Hills and Gullies area from 1991 to 2000
4	Runoff and sediment observation data set of Jiuyuangou watershed in the first sub region of Loess Hilly and gully region in 2024
5	Runoff and sediment observation data set of Jiuyuangou watershed in the first sub region of Loess Hilly and gully region from 2021 to 2022
6	Runoff and sediment observation data set of Jiuyuangou watershed in the first sub region of Loess Hilly and gully region from 2011 to 2020
7	Observation data set of runoff and sediment in wangmaogou watershed, the first sub region of Loess Hilly and gully region, 1980-1990
8	Observation data of runoff and sediment in the first loess hilly gully region from 1980 to 1990
9	Runoff and sediment observation data set of Peijiaguan Gorge watershed in the first sub-region of Loess Hills and Gullies area from 1986 to 1990
10	Runoff and sediment observation data set of Qiaogou watershed in the first sub-region of Loess Hills and Gullies from 1986 to 1990

#	title	file size
1	1.实测流量成果表.zip	73.9 KiB
2	1980-1990韭园沟流域径流泥沙说明.docx	35.8 KiB
3	2.洪水水文要素摘录表.zip	182.9 KiB
4	3.逐次洪水测验成果表.zip	99.7 KiB
5	4.逐日平均流量表.zip	145.5 KiB
6	5.逐日平均含沙量表.zip	120.7 KiB
7	6.逐日平均悬移质输沙率表.zip	119.8 KiB
