Sediment concentration and grain size distribution of runoff water sample at Jiangjia Ravine and Xiangjiang River

English name

CSTR

CSTR:11738.11.NCDC.DDFORS.DB6802.2025

DOI

10.12072/ncdc.ddfors.db6802.2025

Share type

Category

Hydrology

contributors

SONG Dongri , ZHONG Wei , LI Xiaoyu , WEI Li

Datasets description

This dataset includes sediment concentration and grain size distribution of runoff water sample at Jiangjia Ravine and Xiangjiang River.

Base information

collect time	1966/01/01 - 2020/12/31
collect place	Jiangjia Ravine and Xiaojiang River Catchment, Dongchuan District, Yunnan Province, China
altitude	695.0m - 4344.0m
data size	193.5 KiB
data format	excel
Data time resolution

Data source description

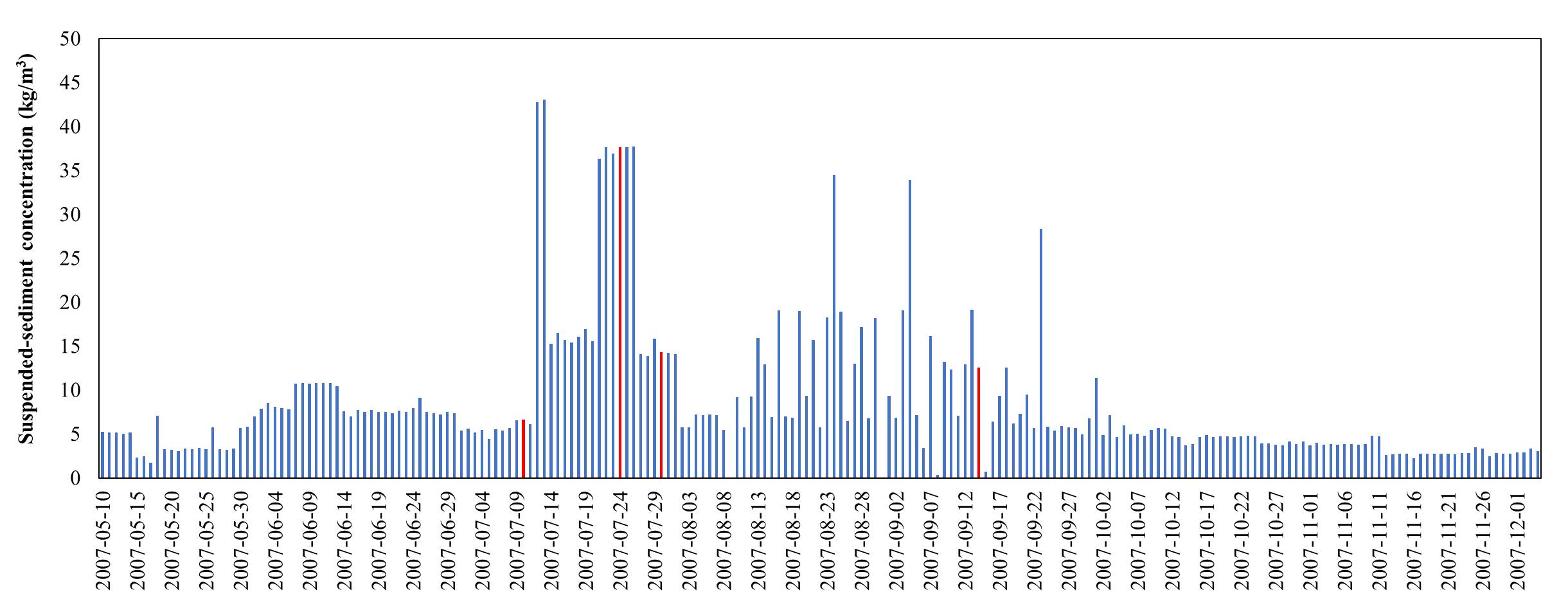

In 1966, the runoff discharge at Jiangjia Ravine in Baishapo and Xiadawa was estimated based on manually measured flow area and velocity. From 2004, the suspended-sediment concentration and grain size distribution were measured in Xiaojiang River at different locations. From 2012, the sediment concentration and sediment grain size distribution of runoff were measured at Jiangjia Ravine. A water sample was manually collected with a volume of 500 ml, and then sediment contained within the sample was filtered, dried, and weighed. Sediment concentration was determined by comparing the weight of the sediment to the total sample weight. Particle size analysis of the sediment was conducted using a Malvern laser particle size analyzer (Model MS2000).

Data processing method

Raw observational data, unprocessed.

Data quality description

The data quality is reliable.

Citations and annotations

In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.

In works such as paper, patent, and monograph, please indicate the data source. In the acknowledgments section of Chinese publications, include the statement “感谢中国科学院东川泥石流观测研究站为本研究提供了相关数据” . In the acknowledgments section of English publications, please state, “We would like to thank the Dongchuan Debris Flow Observation and Research Station (DDFORS), Chinese Academy of Sciences, for providing the field observation data for this study.”For any data-related issues, please contact Li Wei (weili@imde.ac.cn) and Dongri Song (drsong@imde.ac.cn).

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference

SONG Dongri, ZHONG Wei, LI Xiaoyu, WEI Li. Sediment concentration and grain size distribution of runoff water sample at Jiangjia Ravine and Xiangjiang River. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2025. https://cstr.cn/CSTR:11738.11.NCDC.DDFORS.DB6802.2025.
SONG Dongri, ZHONG Wei, LI Xiaoyu, WEI Li. Sediment concentration and grain size distribution of runoff water sample at Jiangjia Ravine and Xiangjiang River. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2025. https://www.doi.org/10.12072/ncdc.ddfors.db6802.2025.

EndnoteEN BibtexEN RISEN

Papers to be cited

Wei L, Song D, Cui P, Su L, Zhou GGD, Hu K, Wei F, Hong Y, Ou G, Zhang J, Kang Z, Guo X, Zhong W, Li X, Zhang Y, Shi C, Tang H. A long-term dataset of debris-flow and hydrometeorological observations from 1961 to 2024 in Jiangjia Ravine, China[J/OL]. Earth Syst. Sci. Data, 2025-12-19, 17, (12): 7331-7358. DOI: 10.5194/essd-17-7331-2025.

Reference format： Endnote Bibtex RIS

license agreement

This work is licensed under CC BY 4.0 (Creative Commons Attribution 4.0 International License).

Relevant data
File list

#	Dataset title
1	Rainfall data at Jiangjiag Ravine and Xiaojiang River Catchment, Yunnan, China
2	Meteorological data at Jiangjia Ravine and Xiaojiang River Catchment , Yunnan, China
3	Observation data at runoff plots at Jiangjia Ravine，Yunnan, China
4	Video of debris flows that occurred in 2023 and 2024 at Jiangjia Ravine, Dongchuan, Yunnan, China.
5	Particle size distribution of debris flows at Jiangjia Ravine, Dongchuan, Yunnan, China, in 1965, 1966, 1974, 1975, 1982, and from 2003 to 2024
6	Cross-sectional measurement data at Jiangjia Ravine, Yunnan, China
7	Debris-flow kinematic data at Jiangjia Ravine, Dongchuan, Yunnan, China, from 1961 to 2024
8	Seismic data of debris flow at Jiangjia Ravine, Yunnan, China, from 2023 to 2024
9	Rheological data of debris-flow slurry at Jiangjia Ravine, Yunnan, China, from 2003 to 2024
10	Soil moisture and temperature data at Jiangjia Ravine, Yunnan, China, from 2017 to 2024

#	title	file size
1	Acquisition period for dataset at Jiangjia Ravine.xlsx	20.7 KiB
2	Description of sediment concentration and grain size distribution of runoff water sample.docx	23.7 KiB
3	Sediment concentration and grain size distribution at Jiangjia Ravine, Yunnan, China, from 2012 to 2020.xlsx	27.4 KiB
4	Sediment concentration and grain size distribution in Xiaojiang River, Yunnan, China, from 2004 to 2014.xlsx	103.6 KiB
5	Water runoff data of Xiadawa and Baishapo at Jiangjia Ravine, 1966.xlsx	18.1 KiB
