Data of 30 meter resolution digital elevation model (DEM) in the Yellow River Basin
  • 2022/02/24 22:33
  • 14434
  • 887
  • 14
English name
Data of 30 meter resolution digital elevation model (DEM) in the Yellow River Basin
CSTR
CSTR:11738.11.ncdc.YRiver.db1677.2022
DOI
10.12072/ncdc.YRiver.db1677.2022
Share type
Online
Category
Basic Geography
source site
High quality development of the Yellow River Basin
contributors
Zhang Yaonan
Datasets description

 This dataset uses SRTM 30-meter resolution DEM data as the data source. It undergoes image processing such as data mosaicking and resampling. Then, it is cropped using the regional boundary of the Yellow River Basin to generate a DEM data product for the Yellow River Basin region with a spatial resolution of 30m. This data can provide basic geographic data support for scientific research in the Yellow River Basin region.

Base information
collect time 2000/01/01  -  2000/12/31
collect place Yellow River Basin
data size 1.1 GiB
data format Raster
Coordinate system WGS84

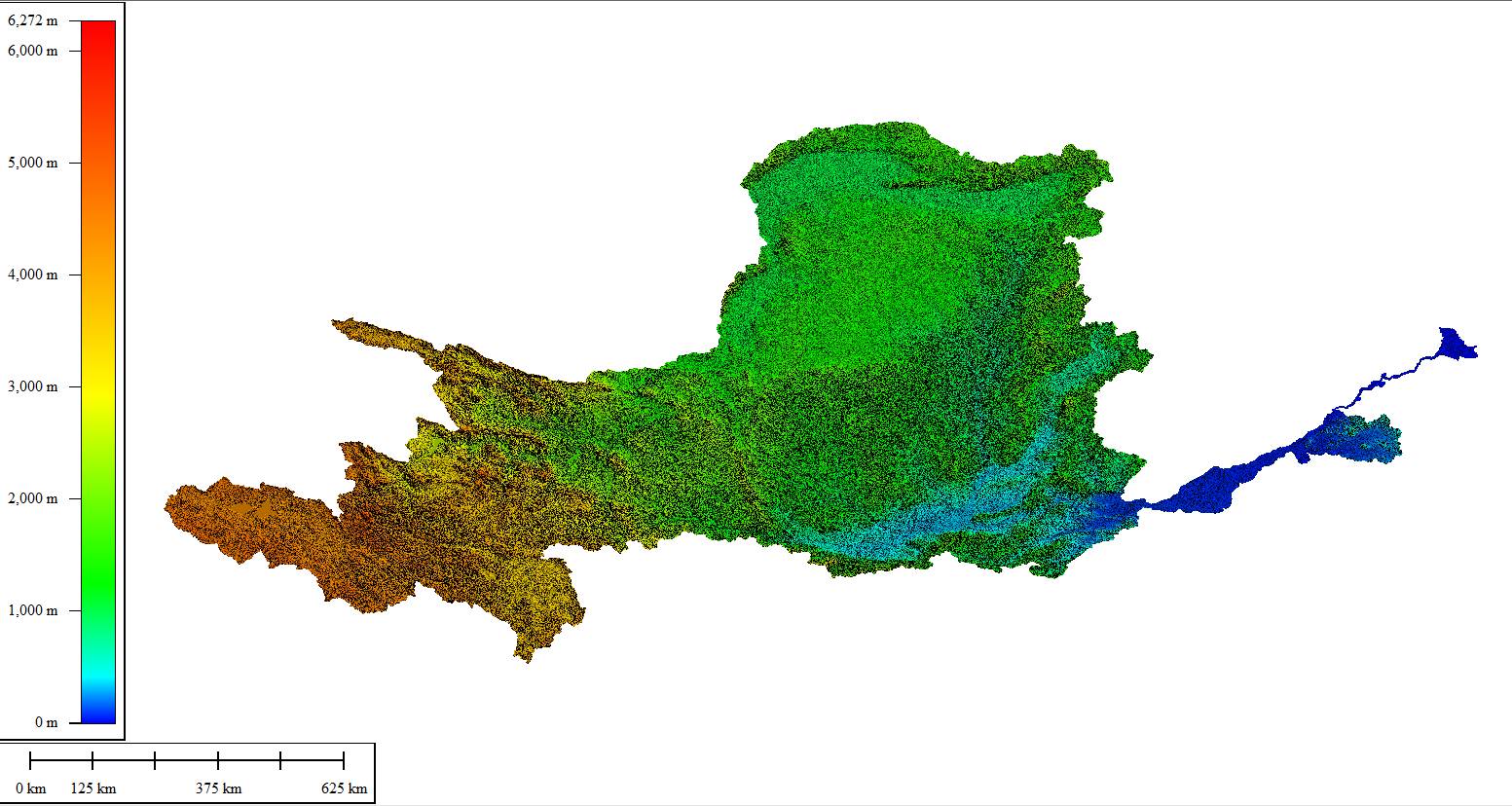

Data thumbnail
Data source description

 The 30m resolution DEM data of the Yellow River Basin is derived from NASA's SRTM v41 1s data, which is currently freely distributed by the USGS and can be downloaded for free from the USGS FTP site.

Data processing method

 The Python program was used for image mosaicking and resampling. Clipping was performed according to the boundary of the Weihe River Basin as the study area to generate a 30-meter DEM data product for the Yellow River Basin.

Data quality description

 The source data was resampled, and the data quality is good. The vertical error of the SRTM DEM data is less than 16 meters.

Citations and annotations
In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference
  1. Zhang Yaonan. Data of 30 meter resolution digital elevation model (DEM) in the Yellow River Basin. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2022. https://cstr.cn/CSTR:11738.11.ncdc.YRiver.db1677.2022.
  2. Zhang Yaonan. Data of 30 meter resolution digital elevation model (DEM) in the Yellow River Basin. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2022. https://www.doi.org/10.12072/ncdc.YRiver.db1677.2022.
license agreement
Creative Commons License   This work is licensed under a Creative Commons Attribution 4.0 International License.
# title file size
1 _ncdc_meta_.json 3.3 KiB
2 黄河流域DEM30.tfw 81 Bytes
3 黄河流域DEM30.tif 1.1 GiB
4 黄河流域DEM30.tif.aux.xml 2.5 KiB
5 黄河流域DEM30.tif.vat.dbf 177.8 KiB
6 黄河流域DEM30.tif.xml 522 Bytes
loading
How to get the data
east 119.34
west  95.88
south  32.84
north  41.84
