Replication Data for: Measurement report: Variations in surface SO2 and NOx mixing ratios from 2004 to 2016 at a background site in the North China Plain

English name

CSTR

CSTR:11738.11.NCDC.DVN.DB6525.2024

DOI

10.7910/DVN/YFVLHV

Share type

Journal data - open download

Category

Atmosphere

source site

contributors

LIN Weili

Datasets description

This dataset presents the seasonal and diurnal variation characteristics and long-term trends of NO_xand SO₂in North China from 2004 to 2016.

Base information

collect time	2005/01/01 - 2017/05/20
collect place	Shangdianzi
altitude	293.3m -
data size	6.7 MiB
data format	excel
Coordinate system

Data source description

Conventional meteorological observation data from Shangdianzi Meteorological Station.

Data processing method

Use a pulsed fluorescence SO₂analyzer (model 43C-TL, Thermo Fisher Scientific, MA, USA) and a chemiluminescence NO_xanalyzer (model 42C-TL, Thermo Fisher Scientific, MA, USA) to perform in-situ measurements of the SO₂and NO_xmixing ratios, respectively.

Data quality description

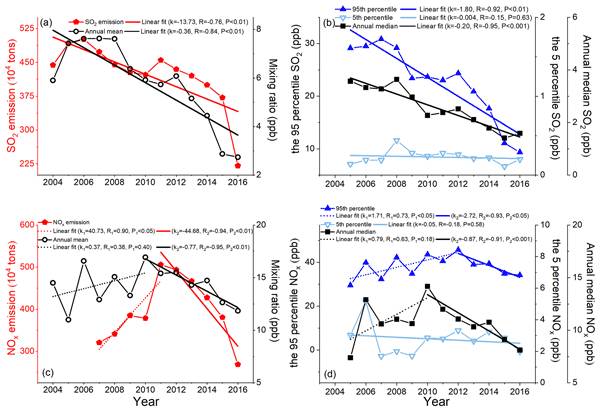

Overall, the annual average value of sulfur dioxide from 2004 to 2016 showed a significant downward trend, with an average annual value of -6.1% (R=-0.84, P<0.01),which is very close to the -6.3% annual sulfur dioxide emissions in Beijing; The annual average value of sulfur dioxide showed a greater downward trend from 2008 to 2016, with an average annual value of -7.4% (R=-0.95, P<0.01).The annual average value of nitrogen oxides showed a fluctuating upward trend from 2005 to 2010, with an increase of+3.4% (R=0.38, P=0.40), reaching its peak in 2010 (16.9 ppb), and then showing an extremely significant fluctuating downward trend from 2010 to 2016, with an annual average decrease of -4.5% (R=0.95, P<0.01). After 2010, there was a significant correlation between the annual average nitrogen oxide mixture ratio and the annual nitrogen oxide emissions in North China (R=0.94, P<0.01).From 2011 to 2016, the decline rate of the annual mean value of the mixed ratio of nitrogen oxides at the regional atmospheric background station in Shangdianzi (SDZ) (-4.8% yr^-1, R=-0.92, P<0.01) was lower than the decline rate of the annual emissions of nitrogen oxides at the State Key Laboratory and Beijing (-8.8% yr^-1, R=-0.94, P<0.01)(-9.0% yr^-1, R=-0.96, P<0.01). This indicates that the surface nitrogen oxide mixture ratio of SDZ has a weaker emission reduction impact on Beijing and its surrounding areas compared to sulfur dioxide.

Citations and annotations

In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference

LIN Weili. Replication Data for: Measurement report: Variations in surface SO2 and NOx mixing ratios from 2004 to 2016 at a background site in the North China Plain. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2024. https://cstr.cn/CSTR:11738.11.NCDC.DVN.DB6525.2024.
LIN Weili. Replication Data for: Measurement report: Variations in surface SO2 and NOx mixing ratios from 2004 to 2016 at a background site in the North China Plain. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2024. https://www.doi.org/10.7910/DVN/YFVLHV.

EndnoteEN BibtexEN RISEN

Papers to be cited

Liu X, Ran L, Lin W, Xu X, Ma Z, Dong F, He D, Zhou L, Shi Q, Wang Y. Measurement report: Variations in surface SO2 and NOx mixing ratios from 2004 to 2016 at a background site in the North China Plain[J]. Atmos. Chem. Phys., 2022-06-01, 22, (10): 7071-7085. DOI: 10.5194/acp-22-7071-2022.

Reference format： Endnote Bibtex RIS

license agreement

This work is licensed under a Creative Commons Attribution 4.0 International License.

Relevant data
File list

#	Dataset title
1	Replication Data for: Measurement report: Long-term variations in surface NOX and SO2 mixing ratios from 2006 to 2016 at a background site in the Yangtze River Delta region, China
2	Reference Radiation Dataset of Beijing Shangdianzi Station in 2017
3	Daily data set of NOx at Shangdianzi atmospheric background watch station in Beijing in 2018
4	Daily data set of sulfur dioxide at Beijing Shangdianzi atmospheric background watch station in 2018
5	Beijing Shangdianzi Atmospheric Background Station Sulfur Dioxide Daily Dataset (2019)
6	Beijing Shangdianzi Atmospheric Background Station Sulfur Dioxide Daily Dataset (2020)
7	Daily Average Value of Sulfur Dioxide at Shangdianzi Atmospheric Background Station in Beijing from 2004 to 2005
8	Monthly Average Value of Sulfur Dioxide at Beijing Shangdianzi Atmospheric Background Station from 2004 to 2005
9	Atmospheric Background Station Radiation Dataset in Shangdianzi region of Beijing in 2016
10	PM2.5 daily data set of Beijing Shangdianzi atmosphere watch station 2018

#	title	file size
1	华北平原某背景点地表SO2和NOx混合比的变化数据集（2004 - 2016年）.xlsx	6.7 MiB

add comment

Scan and browse on mobile

How to get the data

Http Download Ftp Download

It can be downloaded directly or via FTP, and it is recommended to download large data sets via FTP.

publications

Measurement report: Variations in surface SO2 and NOx mixing ratios from 2004 to 2016 at a background site in the North China Plain

Theme:
Sulfur dioxide nitrogen oxides Shangdianzi
Subject:
Atmospheric Science
Time:
2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
Place:
Shangdianzi

east 117.10

west 117.10

south 40.62

north 40.62
