Gansu Province 500m Resolution Digital Elevation Model (DEM) Dataset
  • 2023/10/25 00:05
  • 7125
  • 13
English name
Gansu Province 500m Resolution Digital Elevation Model (DEM) Dataset
CSTR
CSTR:11738.11.NCDC.GSEER.DB4049.2023
DOI
10.12072/ncdc.gseer.db4049.2023
Share type
Submit & Auto-Download
Category
Remote Sensing
source site
Thematic data of ecological environment resources in Gansu Province
contributors
Zhang Yaonan
Datasets description

 The spatial distribution data of China's altitude above sea level (DEM) is sourced from the Shuttle Radar Topography Mission (SRTM) data of the US space shuttle Endeavour. This dataset is generated by resampling based on the latest SRTM V4.1 data, using WGS84 ellipsoidal projection.

Base information
collect time 2023/10/09  -  2023/10/16
collect place Gansu Province
altitude 578.0m - 5748.0m
data size 4.9 MiB
data format tif
Coordinate system WGS84
Projection /

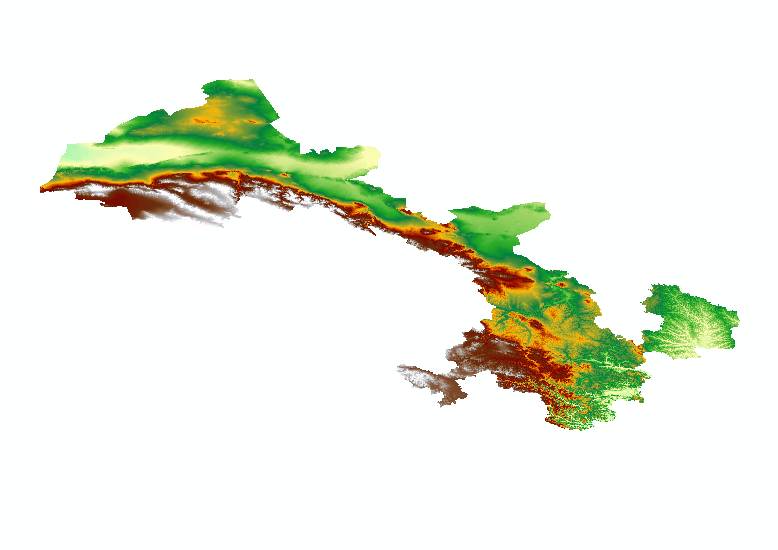

Data thumbnail
Data source description

 The data comes from the Resource and Environmental Science and Data Center: https://www.resdc.cn/data.aspx?DATAID=123

Data processing method

 Using SRTM 500m resolution DEM data as the data source, perform image processing such as data stitching and resampling, and then use regional boundary cropping within Gansu Province to generate DEM data products with a spatial resolution of 500m.

Data quality description

 The data quality is good.

Citations and annotations
In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference
  1. Zhang Yaonan. Gansu Province 500m Resolution Digital Elevation Model (DEM) Dataset. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2023. https://cstr.cn/CSTR:11738.11.NCDC.GSEER.DB4049.2023.
  2. Zhang Yaonan. Gansu Province 500m Resolution Digital Elevation Model (DEM) Dataset. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2023. https://www.doi.org/10.12072/ncdc.gseer.db4049.2023.
license agreement
Creative Commons License   This work is licensed under a CC BY 4.0.
# title file size
1 甘肃省500m分辨率数字高程模型(DEM)数据集.zip 4.9 MiB
loading
How to get the data
east 108.71
west  92.34
south  32.60
north  42.79
